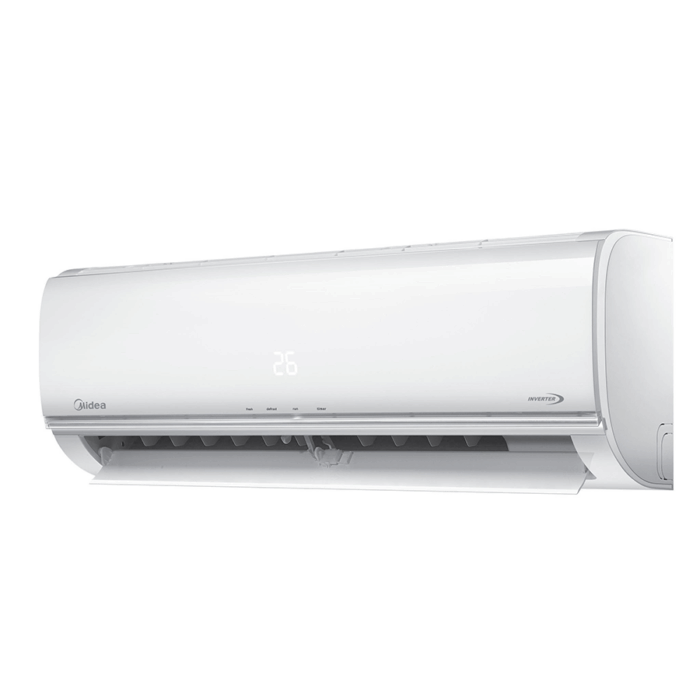

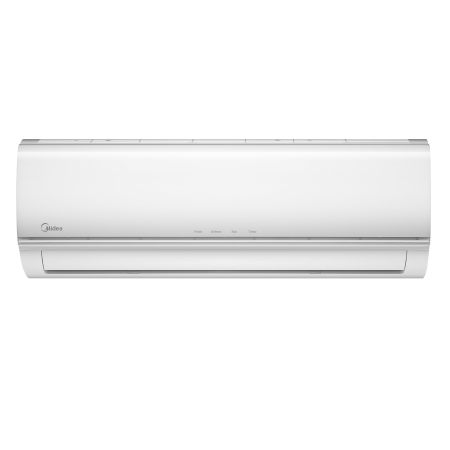

Conditioner AF-12N8D1 FOREST

Description

Specification
Explore Product Specifications
Model NEW AF-12N8D1
Power supply Ph-V-Hz 220-240V,1Ph,50Hz
Inverter YES
Standard conditions Cooling Capacity Btu/h 12000(3800~13400)
Input W 1320(83~1600)
Current A 5.8(0.8~7.3)
EER W/W 3.01
Heating Capacity Btu/h 13000(3700~14200)
Input W 1190(167~1400)
Current A 5.3(1.4~6.4)
COP W/W 3.61
Seasonal conditions Seasonal Cooling Pdesignc kW 3.5
SEER W/W 6.5
Energy Efficiency Class A++
Heating(Average ) Pdesignh kW 2.8
SCOP W/W 4.1
Energy Efficiency Class A+
Heating(Warmer ) Pdesignh kW 3.0
SCOP W/W 5.2
Energy Efficiency Class A+++
Rated Power Input W 2150
Rated Current A 10.0
Compressor Brand GMCC
Indoor fan motor Speed(Hi/Mi/Lo) r/min 1130/950/750
Indoor air flow (Hi/Mi/Lo) m3/h 530/430/310
Indoor noise level (Hi/Mi/Lo) dB(A) 39.5/35.5/25/21.5
Indoor sound power level (Hi) dB(A) 54
Indoor unit Dimension(W*D*H) mm 805x194x285
Packing (W*D*H) mm 870x285x360
Net/Gross weight Kg 7.3/10.6
Outdoor fan motor Speed r/min 780/600
Outdoor air flow m3/h 1750
Outdoor sound pressure level dB(A) 55
Outdoor sound power level dB(A) 64
Outdoor unit Dimension(W*D*H) mm 720x270x495
Packing (W*D*H) mm 842*357*550
Net/Gross weight Kg 21/24.3
Refrigerant Type R32/0.52 kg
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length m 25
Application area (Cooling Standard) m2 35～40
Additional functions
High density filter Yes
Self-cleaning Yes
Golden fin Yes
Refrigerant leakage detect Yes
8°C heating (frost protection) Yes
Turbo operation Yes
Follow me Yes
Timer Yes
Louver position memory function Yes
Mute Mode Yes
Sleep mode Yes
1W standby Yes
Wifi port Yes
