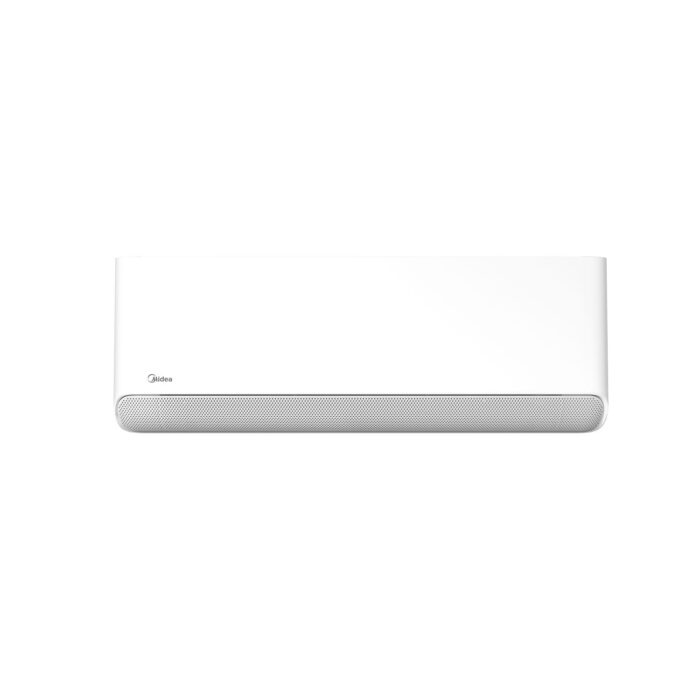

Conditioner MSCB-09HRFN8 BREEZELESS

Description

Specification
Explore Product Specifications
Model MSCB-09HRFN8
Power supply V-Ph-Hz 220-240V~50HZ, 1Ph
Inverter YES
Standard conditions Cooling Capacity Btu/h 9553(3500~12000)
Input W 776(80~1300)
Current A 5.6(0.58~5.65)
EER W/W 3.61
Heating Capacity Btu/h 10000(3500~13000)
Input W 696(100~1250)
Current A 3.2(0.72~5.6)
COP W/W 4.21
Seasonal conditions Seasonal Cooling Pdesignc kW 2.8
SEER W/W 7.6
Energy Efficiency Class A++
Heating (Average season) Pdesignh kW 2.6
SCOP W/W 4.1
Energy Efficiency Class A+
Heating (Warmer season) Pdesignh kW 2.5
SCOP W/W 5.4
Energy Efficiency Class A+++
Rated Power Input W 2200
Rated Current A 10.5
Compressor Brand GMCC
Indoor fan motor Speed(Hi/Mi/Lo) r/min 1000/860/790
Indoor air flow (Hi/Mi/Lo) m3/h 510/415/375
Indoor noise level (Hi/Mi/Lo/Si) dB(A) 37.0/32.0/20.0//
Indoor sound power level dB(A) 53.0
Indoor unit Dimension(W*D*H) mm 812x299x199
Packing (W*D*H) mm 870x277x385
Net/Gross weight kg 9.1/12.4
Outdoor fan motor Speed r/min 800/600
Outdoor air flow m3/h 1850
Outdoor sound pressure level dB(A) 55.5
Outdoor sound power level dB(A) 62
Outdoor unit Dimension(W*D*H) mm 720x270x495
Packing (W*D*H) mm 828x330x530
Net/Gross weight kg 22.7/25.7
Refrigerant Type R32 /0.55 kg
Refrigerant piping Liquid side/ Gas side mm(inch) 6.35mm(1/4in)/9.52mm(3/8in)
Max. refrigerant pipe length m 25
Room temperature Indoor(cooling/ heating) ℃ 16～32/0～30
Outdoor(cooling/heating) ℃ -15～50/-20～24
Application area (Cooling Standard) m2 20～25
High density filter YES
UV lamp YES
Golden fin YES
Refrigerant leakage detect YES
8°C heating (frost protection) YES
Low noise airflow system（Silent） YES
Turbo operation YES
Follow me YES
Breezeless YES
ECO YES
Sleep mode YES
1W standby YES
GEAR YES
Wifi YES
CoolFlash Plus (Cool down 6.3 °C within 10 minutes) YES
Heat Flash (Heats up 10.4 °C within 10 minutes) YES
Intelligent Energy Management (adjust temperature with extra energy saving rate up to 20%.) YES
Air Magic+ (Negative ions inhibit the activity and kill bacterias) YES
i-Clean Technology (4-step self-cleaning technology at up to 56 °C high temperature) YES
Over-The-Air Technology (perform product upgrade, functional optimization and preventive maintenance) YES
