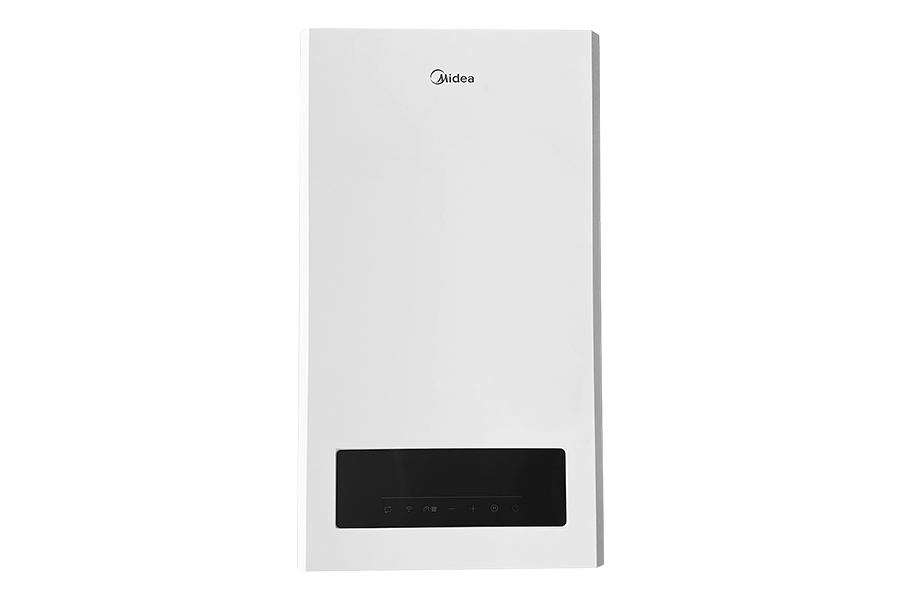

Gas Boiler L1PB24-C28WM

Description

Specification
Explore Product Specifications
L1PB24-C28WM
Wi-Fi √
Rated heating input 24
Minmum heating input 8.9
Rated heating output 21.5
Minmum heating output 7.7
Heating temperature regulation range（℃） 30-80
Floor heating temperature regulation range（℃） 30-60
Applicable water pressure of the heating system（Mpa) 0.04-0.3
Maximum pressure of the heating system（Mpa) 0.3
Capacity of the expansion tank（L） 6
Temperature regulation of the sanitary hot water（℃） 35-60
Maximum pressure of the sanitary hot water（Mpa) 0.8
Minimum pressure of the sanitary hot water（Mpa) 0.02
△t=25K nominal hot water production rate 12.2
△t=30K nominal hot water production rate 10.2
Rated Voltage / Freq 220V/50Hz
Maximum input electric power（W) 120
Waterproofing grade IPX4
Heating water outlet/bacakwater interface G3/4
Sanitary hot water/cole water interface G1/2
Gas interface G3/4
Cold inlet water G1/2
Hot outlet water G1/2
Flue pipe / Chimney diameter (Up cost) φ60/φ100
Efficiency 89.5%
N.W (kg) 30
G.W (kg) 33
Product dimensions (mm) 700*420*243
Packaging dimensions (mm) 835*503*322
