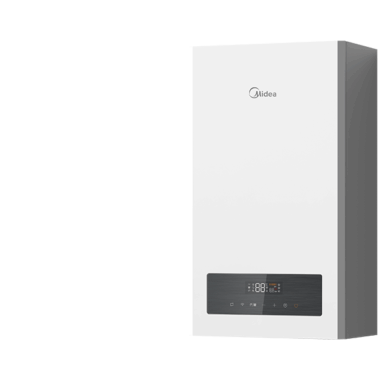

Gas Boiler L1PB32-C28WL

Description

Specification
Explore Product Specifications
L1PB32-C28WL
Wi-Fi √
Rated heating input 32
Minmum heating input 11.8
Rated heating output 28.7
Minmum heating output 10.2
Heating temperature regulation range（℃） 30-80
Floor heating temperature regulation range（℃） 30-60
Applicable water pressure of the heating system（Mpa) 0.04-0.3
Maximum pressure of the heating system（Mpa) 0.3
Capacity of the expansion tank（L） 8
Temperature regulation of the sanitary hot water（℃） 35-60
Maximum pressure of the sanitary hot water（Mpa) 0.8
Minimum pressure of the sanitary hot water（Mpa) 0.02
△t=25K nominal hot water production rate 16.5
△t=30K nominal hot water production rate 13.7
Rated Voltage / Freq 220~240V~/50Hz
Maximum input electric power（W) 140W
Waterproofing grade IPX4
Heating water outlet/bacakwater interface G3/4
Sanitary hot water/cole water interface G1/2
Gas interface G3/4
Cold inlet water G1/2
Hot outlet water G1/2
Flue pipe / Chimney diameter (Up cost) φ60/φ100
Efficiency ≥89.4%
N.W (kg) 37
G.W (kg) 41
Product dimensions (mm) 740*420*330
Packaging dimensions (mm) 840*503*416
